Specification : Materials : BOPP, OPP, PET film Material thickness : 30 ~ 188 μm Roll Face : 1500 mm Web / Treat Width : 1350 mm Max Line Speed : 50 ~ 200 M/min Required Dyne Level : ≥38 Dyne/cm²( Vary on substrate, tested at exit corona) Location : Inkjet Printing Line Base Roll : Aluminium Alloy Dielectric : Silicone rubber vulcanized No. Of Side : Single sided Electrode : Aluminium Alloy Segmented Electrode Enviornment : Non Hazardous
PS: The use of metal electrodes is prohibited for treatment any conductive materials.

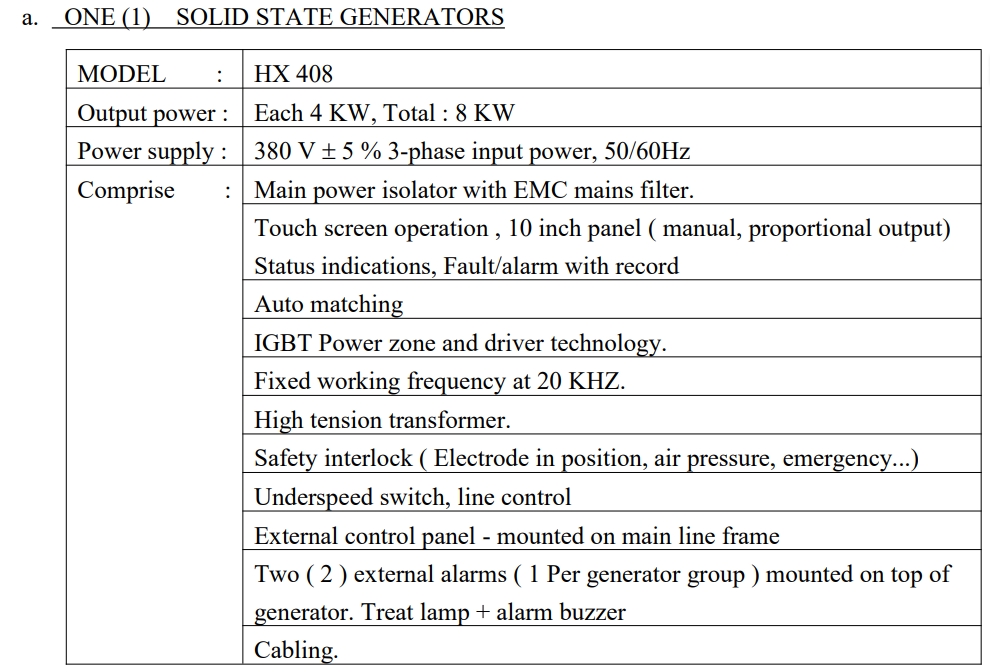

b. One ( 1 ) Speed switch for setting minimum starting line speed Adjustable between 5 – 50 M/min, for protection of dielectric
d. One ( 1 ) 3 KW exhaust blower with 4 Mheat- resistant flexible hose from station to fan. ( PVC pipe works from fan to outside factory by Buyer )-Rigid ducting with suitable diameter and minimum turn. Suggest use min 300mm diameter, max 3 off 135 degree turn, and max 15 meters.
e. All electrical Cabling and wirings and pneumatic piping within corona system
f. English manual and drawings j. Spare parts for generator ： Fuses×10 , U-type speed sensor ×1, Limit switch ×1, Insulator ×1, Silicone rubber repair kit X1
